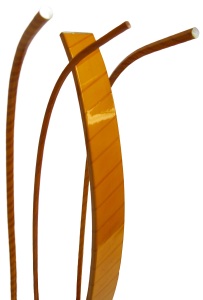

ALCONEX GOLD® is an electrical insulation film recognized by Underwriters Laboratory available in the form of a 240° C electrical insulation for low voltage applications. The ALCONEX GOLD®240°C insulated magnet wire comes fused (or bonded) onto aluminum and copper magnet wire. This innovative insulation has allowed our customers to reduce the build on the conductor, resulting in a more efficient yet smaller coil design.
Do you have a use for ALCONEX GOLD®-insulated magnet wire or want more technical information? Contact us today toll-free at 1-800-443-6481 or view a list of our sales force.
SPECIFICATIONS
- NEMA Specification(s): MW 64-C, MW 64-A, MW 65-C, MW 65-A
- Thermal Class: 240° C
- Insulation Thickness (1 ply): 1.3 mils
- Insulation Builds: 5.2 mils and up
- Dielectric Strength: 5,700 V/mil
- Elongation: 68% MD
- Tensile Strength: 31 PSI
- Water Absorption: Less than 1%
FEATURES AND BENEFITS
- Extraordinary electrical, thermal, and chemical stability
- Strong bond of wrapped film to wire
- High dielectric properties in smaller build
- Compliant with UL 1446 for low voltage applications
- Varnish optional system
- Chemically compatible with a wide range of solvents, varnishes, and encapsulating materials
- Air-dry varnish compatible
TYPICAL APPLICATIONS
- Dry-Type Transformers
- Specialty Transformers
- Traction Motors
- Motor Manufacturing
- Motor Rebuilding
- Lifting Magnets
- Separators
- High Temperature Coils and Relays
- Encapsulated Coils
